AS1024
XSP or OEM
Thrust Needle Roller Bearings Washers AS1024

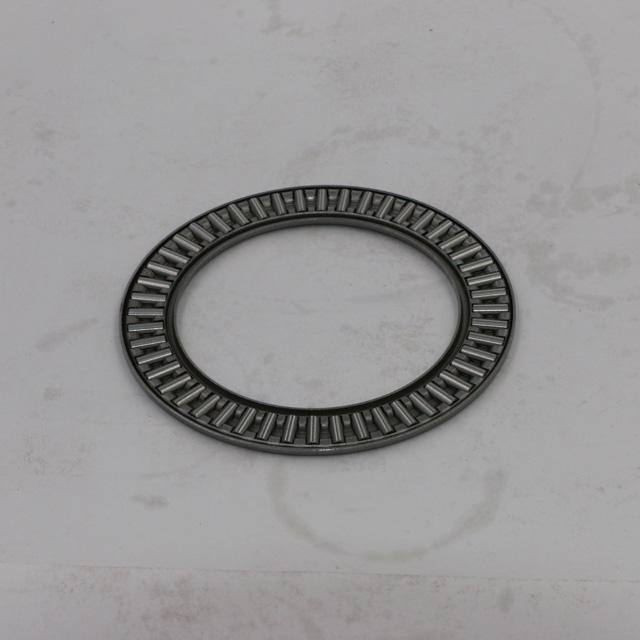

XSP Thrust needle roller bearings or thrust cylindrical roller bearings is a set of needle (roller) bearings with cage between the raceway and the washer, the cage reliably guides and holds a large number of rolling elements, there is only a very slight gap between the rolling elements in the assembly. Thrust needle roller bearings or thrust cylindrical bearings can only support axial loads in one direction, which is a bearing configuration with good performance and minimum axial space occupation.
The surface of the adjacent parts can be used as the raceway of the needle and cage thrust assembly, and the bearing configuration is extremely compact. If this scheme cannot be implemented, under the condition of sufficient support space, the AS series gasket combination can also obtain a small axial section height, and the combination of thick AS, LS, GA, WS, ZS series gaskets, the application is also very effective in different occasions. The AS, LS, GA, WS, ZS series washers need to be ordered separately.
轴径 Shaft Diameter | 垫圈型号及近似重量 Washer Designation and Mass Approx. | 外形尺寸 Boundary Dimensions | |||||||||||
垫圈 Bearing Washer | 重量 Mass | 定位座圈 Housing Locating Washer | 重量 Mass | 定位轴圈 Shaft Locating Washer |
垫圈 Bearing Washer | 重量 Mass | d | D1 | D | d1 | B1 | B | |
mm | g | g | g | mm | |||||||||
4 | AS 0414 | 1 | - | - | - | - | - | 4 | - | 14 | - | 1 | - |
5 | AS 0515 | 1 | - | - | - | - | - | 5 | - | 15 | - | 1 | - |
6 | AS 0619 | 2 | - | - | - | LS 0619 | 4 | 6 | - | 19 | - | 1 | 2.75 |
8 | AS 0821 | 2 | - | - | - | LS 0821 | 4 | 8 | - | 21 | - | 1 | 2.75 |
10 | AS 1024 | 3 | - | - | - | LS 1024 | 7 | 10 | - | 24 | - | 1 | 2.75 |
12 | AS 1226 | 3 | - | - | LS 1226 | 8 | 12 | - | 26 | - | 1 | 2.75 | |
15 | AS 1528 | 3 | GS 811 02 | 8 | WS 81102 | LS 1578 | 9 | 15 | 16 | 28 | 28 | 1 | 2.75 |
17 | AS 1730 | 4 | GS 811 03 | 9 | WS 81103 | LS 1730 | 9 | 17 | 18 | 30 | 30 | 1 | 2.75 |
20 | AS 2035 | 5 | GS 811 04 | 12 | WS 81104 | LS 2035 | 13 | 20 | 21 | 35 | 35 | 1 | 2.75 |
25 | AS 2542 | 7 | GS 811 05 | 19 | WS 81105 | LS 2542 | 19 | 25 | 26 | 42 | 42 | 1 | 3 |
30 | AS 3047 | 8 | GS 811 06 | 20 | WS 81106 | LS 3047 | 22 | 30 | 32 | 47 | 47 | 1 | 3 |
35 | AS 3552 | 9 | GS 811 07 | 27 | WS 81107 | LS 3552 | 29 | 35 | 37 | 52 | 52 | 1 | 3.5 |
40 | AS 4060 | 12 | GS 811 08 | 37 | WS 81108 | LS 4060 | 40 | 40 | 42 | 60 | 60 | 1 | 3.5 |
45 | AS 4565 | 13 | GS 811 09 | 47 | WS 81109 | LS 4565 | 50 | 45 | 47 | 65 | 65 | 1 | 4 |
50 | AS 5070 | 14 | GS 811 10 | 51 | WS 81110 | LS 5070 | 55 | 50 | 52 | 70 | 70 | 1 | 4 |
55 | AS 5578 | 18 | GS 811 11 | 82 | WS 81111 | LS 5578 | 88 | 55 | 57 | 78 | 78 | 1 | 5 |
60 | AS 6085 | 22 | GS 811 12 | 92 | WS 81112 | LS 6085 | 97 | 60 | 62 | 85 | 85 | 1 | 4.75 |
65 | AS 6590 | 24 | GS 811 13 | 110 | WS 81113 | LS 6590 | 115 | 65 | 67 | 90 | 90 | 1 | 5.25 |
70 | AS 7095 | 25 | GS 811 14 | 120 | WS 81114 | LS 7095 | 123 | 70 | 72 | 95 | 95 | 1 | 5.25 |
75 | AS75100 | 27 | GS 811 15 | 136 | WS 81115 | LS 75100 | 142 | 75 | 77 | 100 | 100 | 1 | 5.75 |
80 | AS 80105 | 28 | GS 811 16 | 144 | WS 81116 | LS 80105 | 151 | 80 | 82 | 105 | 105 | 1 | 5.75 |
85 | AS 85110 | 29 | GS 811 17 | 151 | WS 81117 | LS 85110 | 159 | 85 | 87 | 110 | 110 | 1 | 5.75 |
90 | AS 90120 | 39 | GS 811 18 | 225 | WS 81118 | LS 90120 | 234 | 90 | 92 | 120 | 120 | 1 | 6.5 |
100 | AS 100135 | 50 | GS 811 20 | 350 | WS 81120 | LS 100135 | 350 | 100 | 112 | 135 | 135 | 1 | 7 |
110 | AS 110145 | 55 | GS 811 22 | 385 | WS 81122 | LS 110145 | 385 | 110 | 122 | 145 | 145 | 1 | 7 |
120 | AS 120155 | 59 | GS 811 24 | 415 | WS 81124 | LS 120155 | 415 | 120 | 132 | 155 | 155 | 1 | 7 |
130 | AS 130170 | 65 | GS 811 28 | 643 | WS 81126 | LS 130170 | 663 | 130 | 130 | 170 | 170 | 1 | 9 |
140 | AS 140180 | 79 | GS 811 30 | 749 | WS 81128 | LS 140180 | 749 | 140 | 142 | 180 | 178 | 1 | 9.5 |
150 | AS 150190 | 84 | GS 811 32 | 796 | WS 81130 | LS 150190 | 796 | 150 | 152 | 190 | 188 | 1 | 9.5 |
160 | AS 160200 | 89 | GS 811 32 | 842 | WS 81132 | LS 160200 | 842 | 160 | 162 | 200 | 198 | 1 | 9.5 |
