IR101412
XSP or OEM

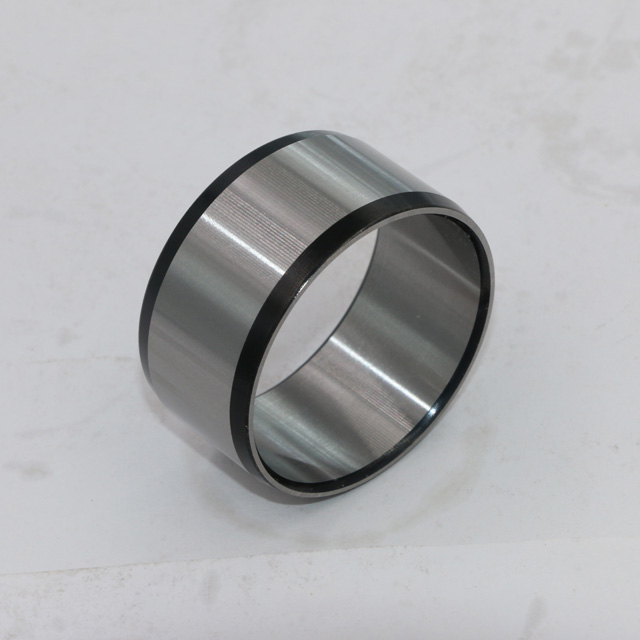

Needle Roller Bearings Inner Ring IR101412
Shandong XSP Bearing Co., Ltd. is a high-tech enterprise which is engaged in the research & development, manufacture of the precision needle roller bearings. The company was founded in 2007, located in the northwest of Shandong province — Panzhuang industrial park, Linqing city, Shandong, China. The brand name of the company's bearing products is "XSP".
Machined ring needle roller Bearings: NA/RNA/NAV/RNAV/NK/NKS/NKI/NKIS/NAO/RNAO/BR/BRI;
Roller followers: NUTR/NATR/NAKR/NAST/STO/RSTO;
Cam followers: CF/KR/KRV/NUKR;
Combined bearings: NKIA/NKIB /NX/NKX /NKXR/ZARN/ZARF;
Thrust roller bearings: AXK/AS/LS;
Drawn-cup needle roller bearings: HK/BK/F/B/TA;
One-way clutches: HF/HFL;
Needle roller and cage assemblies: K/KK;
轴承型号 Bearing Designation | 外形尺寸 Boundary Dimensions | 轴承型号 Bearing Designation | 外形尺寸 Boundary Dimensions | 轴承型号 Bearing Designation | 外形尺寸 Boundary Dimensions | ||||||
d | F | B | d | F | B | d | F | B | |||
mm | mm | mm | |||||||||
IR | 25 | 29 | 20 | IR | 40 | 50 | 22 | IR | 80 | 90 | 25 |
IR | 25 | 30 | 16 | IR | 42 | 47 | 20 | IR | 80 | 90 | 30 |
IR | 25 | 30 | 17 | IR | 42 | 47 | 30 | IR | 80 | 90 | 35 |
IR | 25 | 30 | 18 | IR | 45 | 50 | 25 | IR | 80 | 90 | 54 |
IR | 25 | 30 | 20 | IR | 45 | 50 | 35 | IR | 85 | 95 | 26 |
IR | 25 | 30 | 30 | IR | 45 | 52 | 22 | IR | 85 | 95 | 36 |
IR | 25 | 30 | 32 | IR | 45 | 52 | 23 | IR | 85 | 100 | 35 |
IR | 25 | 32 | 22 | IR | 45 | 52 | 40 | IR | 85 | 100 | 63 |
IR | 28 | 32 | 17 | IR | 45 | 55 | 20 | IR | 90 | 100 | 26 |
IR | 28 | 32 | 20 | IR | 45 | 55 | 22 | IR | 90 | 100 | 30 |
IR | 28 | 32 | 30 | IR | 50 | 55 | 20 | IR | 90 | 100 | 36 |
IR | 29 | 32 | 13 | IR | 50 | 55 | 25 | IR | 90 | 105 | 35 |
IR | 30 | 35 | 13 | IR | 50 | 55 | 35 | IR | 90 | 105 | 63 |
IR | 30 | 35 | 16 | IR | 50 | 58 | 22 | IR | 95 | 105 | 26 |
IR | 30 | 35 | 17 | IR | 50 | 58 | 23 | IR | 95 | 105 | 36 |
IR | 30 | 35 | 18 | IR | 50 | 58 | 40 | IR | 95 | 110 | 35 |
IR | 30 | 35 | 20 | IR | 50 | 60 | 20 | IR | 95 | 110 | 63 |
IR | 30 | 35 | 26 | IR | 50 | 60 | 25 | IR | 100 | 110 | 30 |
IR | 30 | 35 | 30 | IR | 50 | 60 | 28 | IR | 100 | 110 | 40 |
IR | 30 | 37 | 18 | IR | 55 | 60 | 25 | IR | 100 | 115 | 40 |
IR | 30 | 37 | 22 | IR | 55 | 60 | 35 | IR | 110 | 120 | 30 |
IR | 30 | 38 | 20 | IR | 55 | 63 | 25 | IR | 110 | 125 | 40 |
IR | 32 | 37 | 20 | IR | 55 | 63 | 45 | IR | 120 | 130 | 30 |
IR | 32 | 37 | 30 | IR | 55 | 65 | 28 | IR | 120 | 135 | 45 |
IR | 32 | 40 | 20 | IR | 60 | 68 | 25 | IR | 130 | 145 | 35 |
IR | 32 | 40 | 36 | IR | 60 | 68 | 35 | IR | 130 | 150 | 50 |
IR | 32 | 37 | 13 | IR | 60 | 68 | 45 | IR | 140 | 155 | 35 |
IR | 35 | 40 | 17 | IR | 60 | 70 | 25 | IR | 140 | 160 | 50 |
IR | 35 | 40 | 20 | IR | 60 | 70 | 28 | IR | 150 | 165 | 40 |
IR | 35 | 40 | 30 | IR | 65 | 72 | 25 | IR | 160 | 165 | 40 |
IR | 35 | 42 | 20 | IR | 65 | 72 | 45 | IR | 170 | 185 | 45 |
IR | 35 | 42 | 21 | IR | 65 | 73 | 25 | IR | 180 | 195 | 45 |
IR | 35 | 42 | 23 | IR | 65 | 73 | 35 | IR | 190 | 210 | 50 |
IR | 35 | 42 | 36 | IR | 65 | 75 | 28 | IR | 200 | 220 | 50 |
IR | 35 | 43 | 22 | IR | 70 | 80 | 25 | IR | 220 | 240 | 50 |
IR | 38 | 43 | 20 | IR | 70 | 80 | 30 | IR | 240 | 265 | 60 |
IR | 38 | 43 | 30 | IR | 70 | 80 | 35 | IR | 260 | 285 | 60 |
IR | 40 | 45 | 17 | IR | 70 | 80 | 54 | IR | 280 | 305 | 69 |
IR | 40 | 45 | 20 | IR | 70 | 80 | 56 | IR | 300 | 330 | 80 |
IR | 40 | 45 | 30 | IR | 75 | 85 | 25 | IR | 320 | 350 | 80 |
IR | 40 | 48 | 22 | IR | 75 | 85 | 30 | IR | 340 | 370 | 80 |
IR | 40 | 48 | 23 | IR | 75 | 85 | 35 | IR | 360 | 390 | 80 |
IR | 40 | 48 | 40 | IR | 75 | 85 | 54 | IR | 380 | 415 | 100 |
IR | 40 | 50 | 20 | ||||||||
