NKIA5901
XSP or OEM

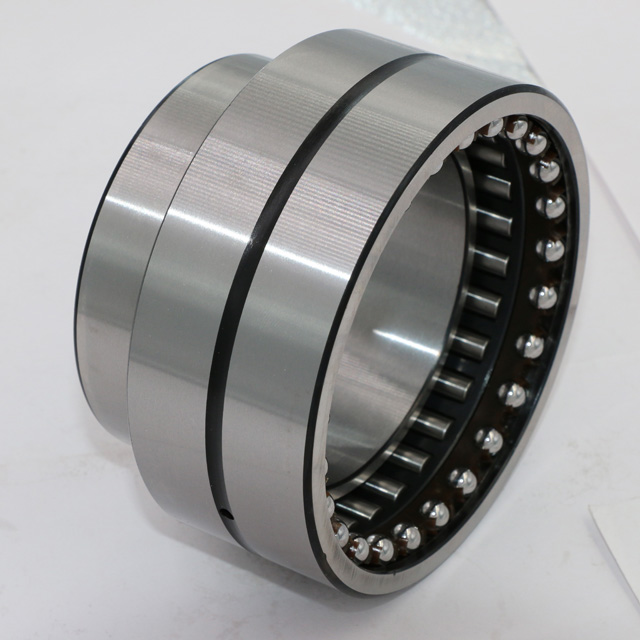

Needle Roller And Angular Contact Ball Combined Bearings NKIA5901
XSP needle and cage assemblies, needle bearings and drawn cup needle roller bearings are all free-end bearings. When combined with a thrust collar, it can be used as a positioning bearing and can withstand small positioning loads at full lubrication and low speed. Other positioning bearings usually take up more space.
The combined needle roller bearing is a positioning bearing with the smallest radial section height. Radial needle roller bearings, if used in combination with thrust ball bearings or cylindrical roller bearings, can be used as bearings for worms, die head spindles and similar applications.
轴径 Shraft Diameter |
轴承型号 Bearing Designation |
重量 Mass |
外形尺寸 Boundary Dimensions (mm） | 基本额定负荷 Basic Load Rating （N) | 极限转速 Limiting Speed （Rpm) | ||||||
径向 Radial | 轴向 Axial | ||||||||||
d |
F |
D |
B | 动Cr Dyn. | 静Cor Stat. | 动Cr Dyn. | 静Cor Stat. | 油润滑 OIL | |||
mm | g | mm | N | Rpm | |||||||
12 | NKIA 5901 | 40 | 12 | 16 | 24 | 16 | 5 047 | 6 352 | 2 010 | 1 620 | 23 000 |
15 | NKIA 5902 | 50 | 15 | 20 | 28 | 18 | 8 400 | 9 600 | 2 140 | 2 070 | 21 000 |
17 | NKIA 5903 | 56 | 17 | 22 | 30 | 18 | 8 800 | 10 600 | 2 340 | 2 370 | 20 000 |
20 | NKIA 5904 | 103 | 20 | 25 | 37 | 23 | 18 000 | 21 000 | 3 140 | 3 900 | 17 000 |
22 | NKIA 59/22 | 118 | 22 | 28 | 39 | 23 | 19 500 | 25 500 | 3 550 | 4 200 | 15 000 |
25 | NKIA 5905 | 130 | 25 | 30 | 42 | 23 | 20 500 | 27 000 | 3 600 | 4 800 | 14 000 |
30 | NKIA 5906 | 147 | 30 | 35 | 47 | 23 | 22 500 | 31 500 | 4 050 | 5 400 | 13 000 |
35 | NKIA 5907 | 243 | 35 | 42 | 55 | 27 | 28 000 | 46 000 | 5 700 | 7 500 | 11 000 |
40 | NKIA 5908 | 315 | 40 | 48 | 62 | 30 | 39 000 | 55 050 | 6 000 | 8 900 | 9 000 |
45 | NKIA 5909 | 375 | 45 | 52 | 68 | 30 | 40 500 | 68 900 | 6 300 | 10 500 | 8 500 |
50 | NKIA 5910 | 380 | 50 | 58 | 72 | 30 | 42 500 | 75 000 | 6 890 | 11 800 | 8 000 |
55 | NKIA 5911 | 550 | 55 | 63 | 80 | 34 | 50 800 | 96 000 | 8 050 | 14 500 | 7 000 |
60 | NKIA 5912 | 590 | 60 | 68 | 85 | 34 | 56 400 | 98 000 | 9 500 | 15 800 | 6 500 |
65 | NKIA 5913 | 635 | 65 | 72 | 90 | 34 | 57 500 | 106 000 | 9 800 | 17 000 | 6500 |
70 | NKIA 5914 | 980 | 70 | 80 | 100 | 40 | 79 050 | 152 000 | 11 800 | 22 500 | 5 500 |
