NAV series full complement needle roller bearing NAV4017 with inner ring
Technical parameter:
Product Name | NAV series full complement needle roller bearing NAV4017 with inner ring |
Material | chrome steel, Gcr15SiMn, stainless steel |
Quality certificate | ISO9001:2000 |
Feature | low noise, less vibration, high precision and long life |
Brand name | XSP or OEM |
Precision rating | P0, P6 |
Antirust period | Bearings should normally be put under the protected condition then it is to be stored and preserved. The rustresisting period is two years. |
Application | Mining operations, paper mills, oil fields, marine industry, steel, electrical, construction machinery, various kinds of professional machinery and heavy industry of all types. |
Type | Needle Roller Bearing | Model | NAV4017 |
Brand | XSP/OEM | d (mm) | 85mm |
Material | Chrome steel | D (mm) | 130mm |
Seal type | Open | B (mm) | 45mm |
Precision rate | P0, P6, P5, or as requested |

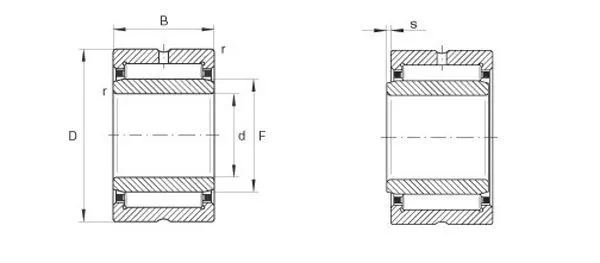

Bearing No. | Boundary dimensions(mm) | ||
Fw | D | C | |
NAV4002 | 15 | 32 | 17 |
NAV4003 | 17 | 35 | 18 |
NAV4004 | 20 | 42 | 22 |
NAV4005 | 25 | 47 | 22 |
NAV4006 | 30 | 55 | 25 |
NAV4007 | 35 | 62 | 27 |
NAV4008 | 40 | 68 | 28 |
NAV4009 | 45 | 75 | 30 |
NAV4010 | 50 | 80 | 30 |
NAV4011 | 55 | 90 | 35 |
NAV4012 | 60 | 95 | 35 |
NAV4013 | 65 | 100 | 35 |
NAV4014 | 70 | 110 | 40 |
NAV4015 | 75 | 115 | 45 |
NAV4016 | 80 | 125 | 45 |
NAV4017 | 85 | 130 | 45 |
Needle bearings are roller bearings with rollers that have high length-to diameter ratios. Needle bearings are used in farm and construction equipment, automotive transmissions, small gasoline engines, gear pumps, small appliance and tool motors, alternators, and aircraft controls.
Needle bearings are usually lubricated with grease, but oil or oil-mist lubrication is preferred for heavy-duty or high-speed applications. Many light-duty needle bearings never require relubrication, but high loads or speeds demand it.
Model: HK., BK. , NK. , NKS.., NA.. , RNA.. , NAO.. , RNAO.. , NKI.. , NKIS..and etc.
NA, RNA, TAF, TR, BR , KT...EG , KTV...EG and etc.
Application: Automobile, Motorcycle, Cycle, Electric tool, Spinning machine, Agriculture machine, Industrial sewing machine, Engineering machinery and etc.
Details images:

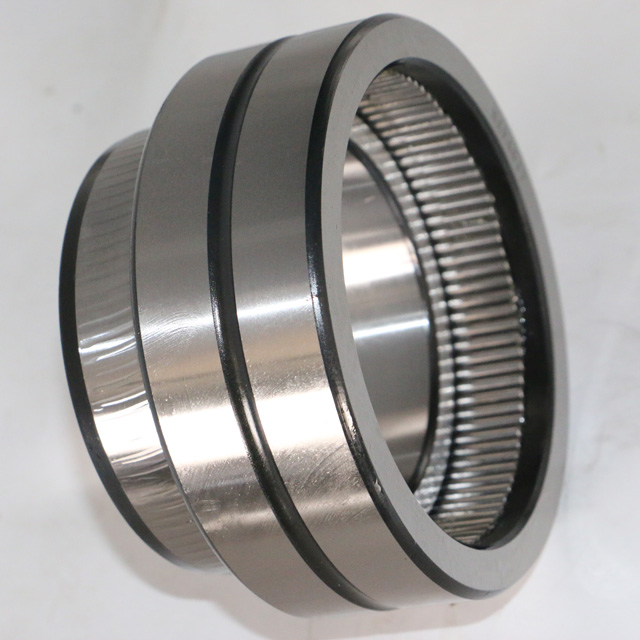

needle roller bearing NAV4017
Company information:
Shandong XSP Bearing Co.,Ltd is a professional needle roller bearing manufacturer.There are 200 sets of modern production processing equipments. our products have the competitive price and high quality. so they sells well aboard.
FAQ:
1. Q: How about the quality of your product?
A: 100% inspection during production.
2. Q: What about the warranty?
A: We are very confident in our products,and we pack them very well to make sure the goods in well protection.
3.Q: Could you send me your catalogue and price list?
A: As we have more than hundreds of products,it is really too hard to send all of catalogue and price list for you.
4.Q:There are a lot of companies which export bearings, why do you choose us?
A: As we are a genuine linear guide supplier .and we are really factory, you need not pay the profit for middlemen. so we can offer you the lowest and competitive price .
5.Q:Do you provide samples? is it free or extra?
A: If the sample is simple and of little value, then free samples are provided, but the buyer must bear the international delivery fee.
Contact:
Sales Manager: Milly
Wechat:abcd20011531
Mobile:13863527630
E-mail:milly-xsp@xspzc.com
Company: Shandong XSP Bearing Co.,Ltd
