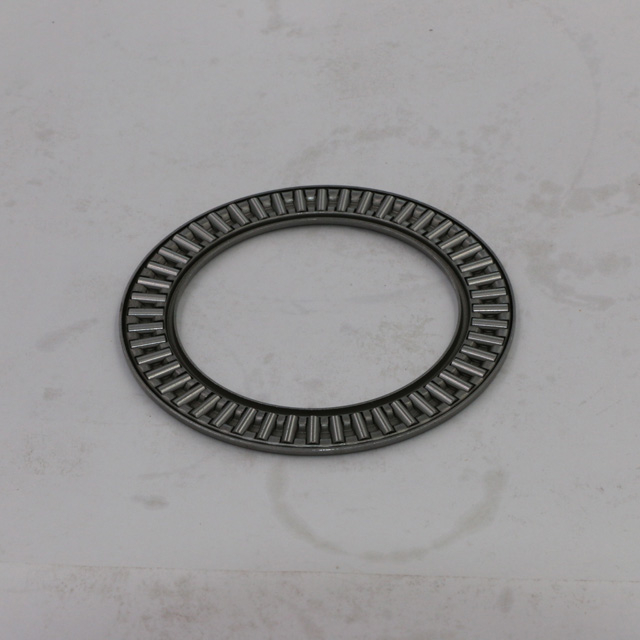

Thrust needle roller bearing AXK1024
XSP-Thrust needle roller and cage assembly or thrust cylindrical sub-bearing is a set of raceway washers equipped with needle roller (roller) cages with cages to reliably guide and hold a large number of rolling elements, with only extremely small gaps between the rolling elements in the same assembly. Thrust needle roller bearings or thrust cylindrical bearings can only support axial loads in one direction, and can be used as bearing configurations with good performance and minimal axial space. If the surface of adjacent components can be used as a raceway for the needle roller and cage thrust assembly, the bearing arrangement can be extremely compact. If this solution cannot be implemented, if there is sufficient support space, a small axial cross-sectional height can be obtained by using AS series gasket combinations. The combination with thicker AS, LS, GA, WS, and ZS series gaskets is also very effective in different occasions. Practical AS, LS, GA, WS, ZS series gaskets must be ordered separately.
Shaft diameter Shaft Diameter | Bearing model Bearing Designation | weight Mass Approximate Approx. | Overall dimensions Boundary Dimensions | Basic load rating Basic Load Rating(N | Limiting SpeedLimiting Speed | |||||
Current | foreign manufacturers | DC1 | DC | DW | Move Cr Dynamic | Cor Static | Grease lubrication Grease | |||
mm | INA | Torrington | g | mm | N | Rpm | ||||
AXK series (metric) | ||||||||||
4 | - | AXK 0414TN | - | 0.7 | 4 | 14 | 2 | 4380 | 7500 | 18000 |
5 | - | AXK 0515TN | - | 0.8 | 5 | 15 | 2 | 4680 | 9100 | 17000 |
6 | 889016 | AXK 0619TN | FNT-619 | 1 | 6 | 19 | 2 | 6740 | 15400 | 16000 |
8 | 889018 | AXK 0821TN | FNT-821 | 2 | 8 | 21 | 2 | 7750 | 12000 | 15000 |
10 | 889100 | AXK 1024 | FNT-1024 | 3 | 10 | 24 | 2 | 9150 | 24500 | 14000 |
12 | 889101 | AXK 1226 | FNT-1226 | 3 | 12 | 26 | 2 | 9660 | 28600 | 13000 |
15 | 889102 | AXK 1528 | FNT-1528 | 4 | 15 | 28 | 2 | 11200 | 35500 | 11000 |
17 | 889103 | AXK 1730 | FNT-1730 | 4 | 17 | 30 | 2 | 11800 | 38600 | 10000 |
20 | 889104 | AXK2035 | FNTA-2035 | 5 | 20 | 35 | 2 | 12900 | 45600 | 8500 |
25 | 889105 | AXK 2512 | FNT-2542 | 7 | 25 | 42 | 2 | 13800 | 578100 | 7000 |
30 | 889106 | AXK 3047 | FNTA-3047 | 8 | 30 | 47 | 2 | 15600 | 69500 | 6000 |
35 | 889107 | AXK 3552 | FNT-3552 | 10 | 35 | 52 | 2 | 16900 | 80100 | 5500 |
40 | 889108 | AXK 4080 | FNT-4060 | 16 | 40 | 60 | 3 | 27500 | 113600 | 4700 |
45 | 889109 | AXK 4565 | FNT-34565 | 18 | 45 | 65 | 3 | 29050 | 127600 | 4300 |
50 | 889110 | AXK 5070 | FNT-5070 | 20 | 50 | 70 | 3 | 31500 | 138000 | 3900 |
55 | 889111 | AXK 5578 | FNT-5578 | 28 | 55 | 78 | 3 | 37400 | 185000 | 3500 |
60 | 889112 | AXK 6085 | FNTA-6085 | 33 | 60 | 85 | 3 | 43000 | 232500 | 3200 |
65 | 889113 | AXK 6590 | FNTA-6590 | 35 | 65 | 90 | 3 | 45800 | 2546000 | 3000 |
70 | 889114 | AXK7095 | FNTA-7095 | 60 | 70 | 95 | 4 | 53600 | 254400 | 2900 |
75 | 889115 | AXK75100 | FNT-75100 | 61 | 75 | 100 | 4 | 54500 | 264600 | 2700 |
80 | 889116 | AXK 80105 | FNTA-80105 | 63 | 80 | 105 | 4 | 55600 | 278500 | 2600 |
85 | 889117 | AXK 85110 | FNTA-85110 | 67 | 85 | 110 | 4 | 57500 | 28800 | 2400 |
90 | 889118 | AXK 90120 | FNTA-90120 | 86 | 90 | 120 | 4 | 72500 | 401000 | 2300 |
100 | 889120 | AXK 100135 | FNTA-100135 | 104 | 100 | 135 | 4 | 90500 | 559500 | 2000 |
110 | 889122 | AXK 110145 | - | 122 | 110 | 145 | 4 | 96500 | 617500 | 1900 |
120 | 889124 | AXK 120155 | - | 131 | 120 | 155 | 4 | 101500 | 679600 | 1700 |
130 | 889126 | AXK 130170 | - | 205 | 130 | 170 | 5 | 132400 | 838900 | 1600 |
140 | 889128 | AXK 140180 | - | 219 | 140 | 180 | 5 | 137200 | 899600 | 1500 |
150 | 889130 | AXK 150190 | - | 232 | 150 | 190 | 5 | 142800 | 959000 | 1400 |
160 | 889132 | AXK 160200 | - | 246 | 160 | 200 | 5 | 147600 | 1015000 | 1300 |
Imperial (series) | ||||||||||
792 | - | - | NTA-512 | 2 | 7.92 | 19.50 | 1.984 | 4600 | 4100 | 7000 |
22.22 | - | - | NTA-1423 | 5 | 22.22 | 36.50 | 1.984 | 10400 | 40800 | 10000 |
50.80 | - | - | NTA-3244 | 18 | 50.80 | 69.85 | 1.984 | 19500 | 115130 | 5600 |
