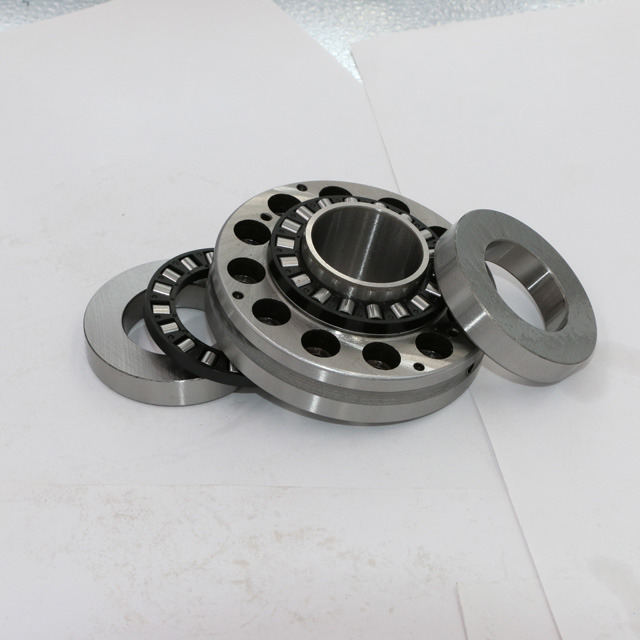

Thrust cylindrical roller and radial needle roller combination bearing ZARN3080TN
XSP needle roller and cage assemblies, needle roller bearings and drawn cup needle roller bearings are free-end bearings. When combined with a thrust retaining ring it can act as a locating bearing and can withstand small locating loads with adequate lubrication and low speeds. Other positioning bearings usually take up more space.

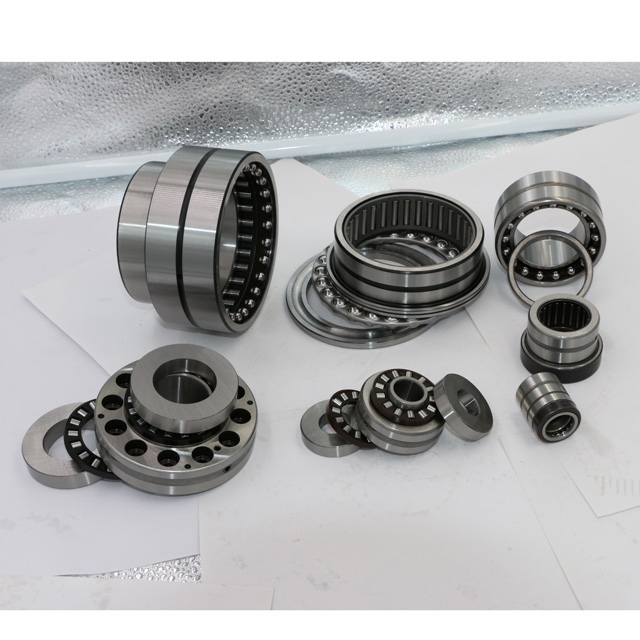

Combined needle roller bearings are locating or one-way locating bearings with the smallest radial cross-section height. Radial needle roller bearings are used in combination with thrust ball bearings or cylindrical roller bearings, bearings for worms, die head spindles and similar applications.
Shaft diameter | Bearing model and approximate weight Bearing Designation | weight mass | Bearing model and approximate weight Bearing Designation | weight mass | Boundary Dimensions(mm) | Fixed screwFixed screw | Basic load rating Basic Load Rating（N） | Limiting SpeedLimiting Speed | Nuts | |||||||||||||||||||||||||
d | D | H | H1 | H2 | H3 | C | D1 | D2 | D3 | B | B1 | B2 | rs | rts | d1 | J | Radial | Axial | oil lubrication Oil | Grease | Thread | Tightening torqueTightening torque | ||||||||||||
Move Cr | JingCor | Move Cr | JingCor | |||||||||||||||||||||||||||||||
mm | g | g | mm | N | N | |||||||||||||||||||||||||||||
20 | ZARN2062TN | 0.87 | ZARN2062LTN | 0.99 | 20 | 62 | 60 | 40 | 75 | 55 | 20 | 52 | 40 | 50 | 12.5 | 27.5 | 11 | 0.3 | 0.6 | - | - | - | - | - | 64000 | 141000 | 22600 | 36000 | 6000 | 1500 | M20×1.5 | 38 | ||
ZARF2080TN | 1.1 | ZARF2080LTN | 1.22 | 20 | 80 | 60 | 38 | 75 | 53 | 18 | 52 | 40 | 50 | 12.5 | 27.5 | 11 | 0.3 | 0.6 | 3.2 | 63 | M | 6 | 12 | 64000 | 141000 | 22600 | 36000 | 6000 | 1500 | M20×1.5 | 38 | |||
25 | ZARN2572TN | 1.17 | ZARN2572LTN | 1.32 | 25 | 72 | 60 | 40 | 75 | 55 | 20 | 62 | 48 | 60 | 12.5 | 27.5 | 11 | 0.3 | 0.6 | - | - | - | - | - | 80000 | 199000 | 24300 | 41500 | 4900 | 1400 | M25×1.5 | 55 | ||
ZARF3080TN | 1.6 | ZARF2590LTN | 1.75 | 25 | 90 | 60 | 38 | 75 | 53 | 18 | 62 | 48 | 60 | 12.5 | 27.5 | 11 | 0.3 | 0.6 | 3.2 | 73 | M | 6 | 12 | 80000 | 199000 | 24300 | 41500 | 4900 | 1400 | M25×1.5 | 55 | |||
30 | ZARN3080TN | 1.5 | ZARN3080LTN | 1.7 | 30 | 80 | 60 | 43 | 82 | 59 | 20 | 68 | 52 | 66 | 14 | 30 | 12 | 0.3 | 0.6 | - | - | - | - | - | 107000 | 265000 | 26000 | 47000 | 4400 | 1300 | M30×1.5 | 75 | ||
ZARF30105TN | 1.95 | ZARF30105LTN | 2.15 | 30 | 105 | 66 | 41 | 82 | 57 | 18 | 68 | 52 | 66 | 14 | 30 | 12 | 0.3 | 0.6 | 3.2 | 85 | M | 8 | 12 | 107000 | 265000 | 26000 | 47000 | 4400 | 1300 | M30×1.5 | 75 | |||
35 | ZARN3585TN | 1.65 | ZARN3585TN | 1.8 | 35 | 85 | 66 | 43 | 82 | 59 | 20 | 73 | 60 | 73 | 14 | 30 | 12 | 0.3 | 0.6 | - | - | - | - | - | 105000 | 265000 | 27500 | 53000 | 4000 | 1250 | M35×1.5 | 100 | ||
ZARF35110TN | 1.5 | ZARF35110TN | 1.85 | 35 | 110 | 66 | 41 | 82 | 57 | 18 | 73 | 60 | 73 | 14 | 30 | 12 | 0.3 | 0.6 | 3.2 | 88 | M | 8 | 12 | 117000 | 265000 | 27500 | 53000 | 4000 | 1250 | M35×1.5 | 100 | |||
40 | ZARN4090TN | 2.09 | ZARN4090LTN | 2.39 | 40 | 90 | 66 | 50 | 93 | 68 | 25 | 78 | 60 | 78 | 16 | 34 | 12 | 0.3 | 0.6 | - | - | - | - | - | 117000 | 315000 | 38000 | 74000 | 3700 | 1200 | M40×1.5 | 120 | ||
ZARF40115TN | 2.7 | ZARF40115LTN | 3.0 | 40 | 115 | 66 | 47.5 | 93 | 65.5 | 22.5 | 78 | 60 | 78 | 16 | 34 | 12 | 0.3 | 0.6 | 6 | 94 | M | 8 | 12 | 154000 | 315000 | 38000 | 74000 | 3700 | 1200 | M40×1.5 | 120 | |||
45 | ZARN45105TN | 3.02 | ZARN45105LTN | 3.42 | 45 | 105 | 75 | 53.5 | 103 | 74.5 | 25 | 90 | 70 | 88 | 17.5 | 38.5 | 14 | 0.3 | 0.6 | - | - | - | - | 154000 | 405000 | 40000 | 82000 | 3300 | 1150 | M45×1.5 | 150 | |||
ZARF45130TN | 3.9 | ZARF45130TN | 4.3 | 45 | 130 | 75 | 51 | 103 | 72 | 22.5 | 90 | 70 | 88 | 17.5 | 38.5 | 14 | 0.3 | 0.6 | 6 | 105 | M | 8 | 12 | 172000 | 405000 | 40000 | 82000 | 3300 | 1150 | M45×1.5 | 150 | |||
50 | ZARN50110TN | 3.3 | ZARN50110LTN | 3.75 | 50 | 110 | 82 | 53.5 | 103 | 74.5 | 25 | 95 | 75 | 93 | 17.5 | 38.5 | 14 | 0.3 | 0.6 | - | - | - | - | 172000 | 480000 | 42000 | 90000 | 3100 | 1100 | M50×1.5 | 180 | |||
ZARF50140TN | 4.2 | ZARF50140LTN | 4.65 | 50 | 140 | 82 | 51 | 103 | 72 | 22.5 | 95 | 75 | 93 | 17.5 | 38.5 | 14 | 0.3 | 0.6 | 6 | 113 | M | 10 | 12 | 177000 | 480000 | 42000 | 90000 | 3100 | 1100 | M50×1.5 | 180 | |||
55 | ZARN55115TN | 3.5 | ZARN55115LTN | 4.0 | 55 | 115 | 82 | 53.5 | 103 | 74.5 | 25 | 100 | 80 | 98 | 17.5 | 38.5 | 14 | 0.3 | 0.6 | - | - | - | - | 177000 | 500000 | 44000 | 98000 | 2900 | 1000 | M55×1.5 | 220 | |||
ZARF55145TN | 4.5 | ZARF55145LTN | 5.0 | 55 | 145 | 82 | 51 | 103 | 72 | 22.5 | 100 | 80 | 98 | 17.5 | 38.5 | 14 | 0.3 | 0.6 | 6 | 118 | M | 10 | 12 | 187000 | 500000 | 44000 | 98000 | 2900 | 1000 | M55×1.5 | 220 | |||
60 | ZARN60120TN | 3.7 | ZARN60120LTN | 4.85 | 60 | 120 | 82 | 53.5 | 103 | 74.5 | 25 | 105 | 90 | 105 | 17.5 | 38.5 | 14 | 0.3 | 0.6 | - | - | - | - | - | 187000 | 550000 | 44500 | 92000 | 2700 | 950 | M60×1.5 | 250 | ||
ZARF60150TN | 4.7 | ZARF60150LTN | 5.35 | 60 | 150 | 82 | 51 | 103 | 72 | 22.5 | 105 | 90 | 105 | 17.5 | 38.5 | 16 | 0.3 | 0.6 | 6 | 123 | M | 10 | 12 | 172000 | 550000 | 44500 | 92000 | 2700 | 950 | M60×1.5 | 250 | |||
65 | ZARN65125TN | 4.0 | ZARN65125LTN | 4.6 | 65 | 125 | 82 | 53.5 | 103 | 74.5 | 25 | 110 | 90 | 108 | 17.5 | 38.5 | 16 | 0.3 | 0.6 | - | - | - | - | - | 172000 | 500000 | 54000 | 104000 | 2600 | 900 | M65×1.5 | 270 | ||
ZARF65155TN | 5.1 | ZARF65155LTN | 5.7 | 65 | 155 | 82 | 51 | 103 | 72 | 22.5 | 110 | 90 | 108 | 17.5 | 38.5 | 16 | 0.3 | 0.6 | 6 | 128 | M | 10 | 12 | 201000 | 500000 | 54000 | 104000 | 2600 | 900 | M65×1.5 | 270 | |||
70 | ZARN70130TN | 4.1 | ZARN70130LTN | 4.85 | 70 | 130 | 82 | 53.5 | 103 | 74.5 | 25 | 115 | 100 | 115 | 17.5 | 38.5 | 16 | 0.3 | 0.6 | - | - | - | - | - | 201000 | 630000 | 56000 | 119000 | 2400 | 800 | M70×1.5 | 330 | ||
ZARF70160TN | 5.2 | ZARF70160LTN | 5.95 | 70 | 160 | 82 | 51 | 103 | 72 | 22.5 | 115 | 110 | 115 | 17.5 | 38.5 | 16 | 0.3 | 0.6 | 6 | 133 | M | 10 | 12 | 290000 | 630000 | 56000 | 119000 | 2400 | 800 | M70×1.5 | 330 | |||
75 | ZARN75155TN | 7.9 | ZARN75155LTN | 9.1 | 75 | 155 | 100 | 65 | 125 | 74.5 | 30 | 135 | 115 | 135 | 21 | 46 | 16 | 0.3 | 0.6 | - | - | - | - | - | 290000 | 890000 | 72000 | 132000 | 2100 | 700 | M75×1.5 | 580 | ||
ZARF75185TN | 9.4 | ZARF75185LTN | 4.6 | 75 | 185 | 100 | 65 | 125 | 72 | 27 | 135 | 115 | 135 | 21 | 46 | 16 | 0.3 | 0.6 | 6 | 155 | M | 12 | 12 | 290000 | 890000 | 72000 | 132000 | 2100 | 700 | M75×1.5 | 580 | |||
90 | ZARN90180TN | 11.8 | ZARN90180L | 13.2 | 90 | 180 | 110 | 72.5 | 135 | 74.5 | 35 | 160 | 130 | 158 | 22.5 | 47.5 | 16 | 0.3 | 0.6 | - | - | - | - | - | 300000 | 940000 | 98000 | 210000 | 1800 | 700 | M90×1.5 | 960 | ||
ZARF90210TN | 13.7 | ZARF90210L | 15.1 | 90 | 210 | 110 | 69.5 | 135 | 72 | 32 | 160 | 130 | 158 | 22.5 | 47.5 | 16 | 0.3 | 0.6 | 6 | 180 | M | 12 | 16 | 300000 | 940000 | 98000 | 210000 | 1800 | 700 | M90×1.5 | 960 | |||
