HF1012
XSP or OEM

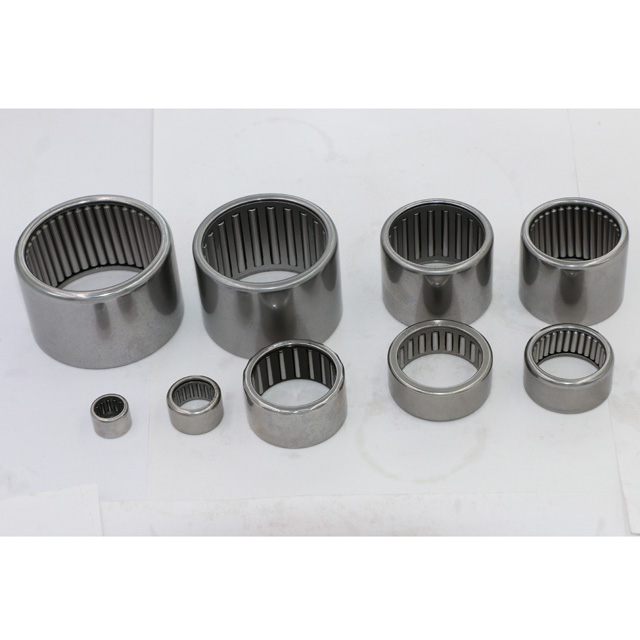

Stamped outer ring one-way needle roller clutch bearing HF1012
The outer ring of the XSP stamped outer ring needle roller bearing is precision stamped from a thin steel plate, with a small structural space and a large load capacity. It is suitable for occasions where the installation space is limited and the shell hole is not suitable as a raceway. And no further axial positioning is required after pressing into the seat hole. This type of needle roller bearing generally does not use an outer ring. If you need to use an outer ring, you can select it from the sample. And no further axial positioning is required after pressing into the seat hole. This type of needle roller bearing with pressed outer ring needle roller bearing is extremely effective in sealing the shaft end bearing. Grease lubricated needle roller bearings long-term use -20℃ -120℃
Shaft diameter Shaft Diameter | Bearing model Bearing Designation | Overall dimensions Boundary Dimensions (mm) | Transmission torque Driving Torque MD | Limit speed Limiting Speed (rpm) | weight Mass | |||||
(mm) | Current designation | Original code name origination designation | FW | D | C | min | (Nm) | n | nA | (kg) |
6 | HF0612 | - | 6 | 10 | 12 | 0.3 | 1.76 | 20000 | 13000 | 0.00300 |
8 | HF0812 | - | 8 | 12 | 12 | 0.3 | 3.15 | 16000 | 11000 | 0.00350 |
HFL0822 | DX-81212 | 8 | 12 | 22 | 0.3 | 3.15 | 16000 | 11000 | 0.00588 | |
10 | HF1012 | - | 10 | 14 | 12 | 0.3 | 5.3 | 14000 | 11000 | 0.00422 |
HFL1012 | 10 | 14 | 22 | 0.3 | 5.3 | 14000 | 11000 | 0.00712 | ||
12 | HF1216 | - | 12 | 18 | 16 | 0.3 | 12.2 | 10000 | 7000 | 0.01050 |
HFL1226 | 12 | 18 | 26 | 0.3 | 12.2 | 10000 | 7000 | 0.01800 | ||
14 | HF1416 | - | 14 | 20 | 16 | 0.3 | 17.3 | 8500 | 7000 | 0.01230 |
HFL1426 | - | 14 | 20 | 26 | 0.3 | 17.3 | 8500 | 7000 | 0.02048 | |
16 | HFL1616 | - | 16 | 22 | 16 | 0.3 | 20.5 | 8500 | 7000 | 0.01250 |
HFL162224 | - | 16 | 22 | 24 | 0.3 | 20.5 | 8500 | 7000 | 0.01900 | |
HFL1626 | - | 16 | 22 | 26 | 0.3 | 20.5 | 8500 | 7000 | 0.02179 | |
19.05 | RC121610FS | - | 19.05 | 25.4 | 15.88 | 0.3 | 22.1 | 0.01770 | ||
HF202611 | - | 20 | 26 | 11 | 0.3 | 16 | 6500 | 6500 | 0.01104 | |
20 | HF2012 | - | 20 | 26 | 12 | 0.3 | 17 | 6500 | 6500 | 0.01222 |
HF2016 | - | 20 | 26 | 16 | 0.3 | 28.5 | 6500 | 6500 | 0.02180 | |
HFL2026 | - | 20 | 26 | 20 | 0.3 | 28.5 | 0.02561 | |||
25 | HF2520 | - | 25 | 32 | 20 | 0.3 | 66 | 5000 | 5000 | 0.03030 |
RC-162108-FS | - | 25.4 | 33.34 | 12.7 | 0.3 | 30 | 5000 | 5000 | 0.01935 | |
25.4 | RC-162110-FS | - | 25.4 | 33.338 | 15.88 | 0.3 | 67 | 5000 | 5000 | 0.03040 |
RCB-162117 | - | 25.4 | 33.34 | 26.99 | 0.3 | 67 | 5000 | 5000 | 0.05170 | |
30 | HF3016 | - | 30 | 37 | 16 | 0.3 | 70 | 4000 | 4000 | 0.02840 |
HF3030 | - | 30 | 37 | 20 | 0.3 | 90 | 4000 | 4000 | 0.03490 | |
35 | HF3520 | - | 35 | 42 | 20 | 0.3 | 121 | 3700 | 3700 | 0.04140 |
