IR101412

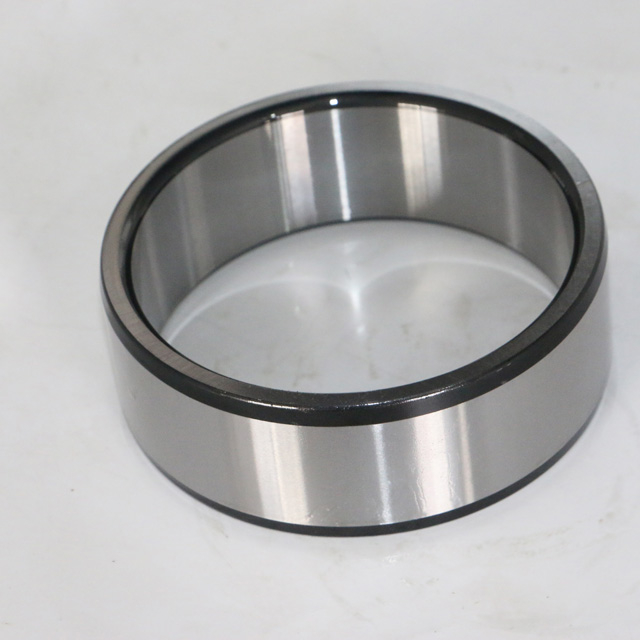

Solid ring needle roller bearing inner ring IR101412
Shandong Xinshengpu Precision Needle Roller Bearing Co., Ltd. is a high-tech enterprise specializing in the R&D and manufacturing of high-end precision needle roller bearings and needle roller bearings. The company was founded in 2007 and is located in Panzhuang Industrial Park, Linqing, Shandong, the land of northwest Shandong. The brand of the company's bearing products is 'XSP'.
XSP products are stable and of excellent quality. The company's main products are: solid ferrule needle roller bearings, NA/RNA/NAV/RNAV/NK/NKS/NKI/NKIS/NAO; roller bearings, NUTR/NATR/NUKR/NAKR /NAST/CF/STO/RSTO; combined bearings, NKIA/NKIB /NX/NKX /NKXR/ ZARN/ZARF; thrust needle roller bearings, AXK /AS/LS; stamped outer ring bearings, HK /BK/F/B/TA; one-way bearings, HF/ HFL; cage assembly bearings, K/KK; roller bearings, etc. Can design and produce non-standard bearings for customers.
Bearing model Bearing Designation | Overall dimensions Boundary Dimensions | Bearing model Bearing Designation | Overall dimensions Boundary Dimensions | ||||
d | F | B | d | F | B | ||
mm | mm | ||||||
IR | 5 | 8 | 12 | IR | 25 | 29 | 20 |
IR | 5 | 8 | 16 | IR | 25 | 30 | 16 |
IR | 6 | 9 | 12 | IR | 25 | 30 | 17 |
IR | 6 | 9 | 16 | IR | 25 | 30 | 18 |
IR | 6 | 10 | 10 | IR | 25 | 30 | 20 |
IR | 7 | 10 | 12 | IR | 25 | 30 | 30 |
IR | 7 | 10 | 16 | IR | 25 | 30 | 32 |
IR | 8 | 12 | 10 | IR | 25 | 32 | 22 |
IR | 8 | 12 | 12 | IR | 28 | 32 | 17 |
IR | 9 | 12 | 12 | IR | 28 | 32 | 20 |
IR | 9 | 12 | 16 | IR | 28 | 32 | 30 |
IR | 10 | 14 | 12 | IR | 29 | 32 | 13 |
IR | 10 | 14 | 13 | IR | 30 | 35 | 13 |
IR | 10 | 14 | 14 | IR | 30 | 35 | 16 |
IR | 10 | 14 | 16 | IR | 30 | 35 | 17 |
IR | 10 | 14 | 20 | IR | 30 | 35 | 18 |
IR | 12 | 15 | 12 | IR | 30 | 35 | 20 |
IR | 12 | 15 | 16 | IR | 30 | 35 | 26 |
IR | 12 | 16 | 12 | IR | 30 | 35 | 30 |
IR | 12 | 16 | 13 | IR | 30 | 37 | 18 |
IR | 12 | 16 | 14 | IR | 30 | 37 | 22 |
IR | 12 | 16 | 16 | IR | 30 | 38 | 20 |
IR | 12 | 16 | 20 | IR | 32 | 37 | 20 |
IR | 12 | 16 | 22 | IR | 32 | 37 | 30 |
IR | 14 | 17 | 17 | IR | 32 | 40 | 20 |
IR | 15 | 18 | 16 | IR | 32 | 40 | 36 |
IR | 15 | 19 | 16 | IR | 32 | 37 | 13 |
IR | 15 | 19 | 20 | IR | 35 | 40 | 17 |
IR | 15 | 20 | 12 | IR | 35 | 40 | 20 |
IR | 15 | 20 | 13 | IR | 35 | 40 | 30 |
IR | 15 | 20 | 14 | IR | 35 | 42 | 20 |
IR | 17 | 20 | 16 | IR | 35 | 42 | 21 |
IR | 17 | 20 | 20 | IR | 35 | 42 | 23 |
IR | 17 | 21 | 16 | IR | 35 | 42 | 36 |
IR | 17 | 21 | 20 | IR | 35 | 43 | 22 |
IR | 17 | 22 | 13 | IR | 38 | 43 | 20 |
IR | 17 | 22 | 16 | IR | 38 | 43 | 30 |
IR | 17 | 22 | 23 | IR | 40 | 45 | 17 |
IR | 17 | 24 | 20 | IR | 40 | 45 | 20 |
IR | 20 | 24 | 16 | IR | 40 | 45 | 30 |
IR | 20 | 24 | 20 | IR | 40 | 48 | 22 |
IR | 20 | 25 | 16 | IR | 40 | 48 | 23 |
IR | 20 | 25 | 17 | IR | 40 | 48 | 40 |
IR | 20 | 25 | 18 | IR | 40 | 50 | 20 |
IR | 20 | 25 | 20 | IR | 40 | 50 | 22 |
IR | 20 | 25 | 30 | IR | 42 | 47 | 20 |
IR | 20 | 28 | 20 | IR | 42 | 47 | 30 |
IR | 22 | 26 | 16 | IR | 45 | 50 | 25 |
IR | 22 | 26 | 20 | IR | 45 | 50 | 35 |
IR | 22 | 28 | 17 | IR | 45 | 52 | 22 |
IR | 22 | 28 | 20 | IR | 45 | 52 | 23 |
IR | 22 | 28 | 30 | IR | 45 | 52 | 40 |
IR | 45 | 55 | 20 | ||||
IR | 45 | 55 | 22 | ||||
