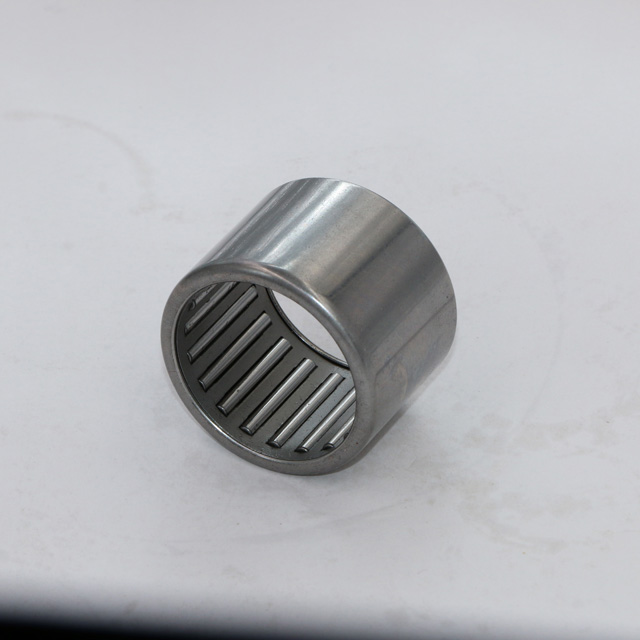

Sealed Drawn Cup Needle Roller Bearings HK0810RS
The outer ring of the drawn cup needle roller bearings is made of thin steel plates by precision stamping, with a small structural space and a large load capacity. It is suitable for occasions where the installation space is limited and the housing is not suitable as a raceway. And after pressing into the seat hole, no further axial positioning is needed. This type of needle roller bearings generally do not need an outer ring. If you need to use an outer ring, you can choose from the sample, and there is no need for further axial positioning after pressing into the seat hole. Drawn cup needle roller bearings are extremely effective for sealing shaft ends. Grease lubricated needle roller bearings can be used for a long time at -20 ℃ -120 ℃.
轴径 Shaft Diameter | 轴承型号及近似重量 Bearing Designation and Mass Approx. | 外形尺寸 Boundary Dimensions (mm） | 基本额定负荷 Basic Load Rating （N) | 极限转速 Limiting Speed | |||||||||
穿孔型 单面密封 | 重量 Mass | 穿孔型 双面密封 | 重量 Mass | 封口型 单面密封 | 重量 Mass |
FW |
D |
C |
C1 | 动 Cr Dynamic | 静Cor Static | 脂润滑 Grease | |
mm | Open end sealed on one side | g | Open end sealed on both side | g | Close end sealed on one side | g | mm | N | rpm | ||||
8 | HK0810RS | 2.9 | HK0810. 2RS | 3.5 | - | - | 8 | 12 | 10 | 12 | 2250 | 2100 | 19000 |
9 | HK09×13×12RS | 4 | - | - | - | - | 9 | 13 | 12 | - | 3800 | 4300 | 19000 |
10 | HK1012RS | 4.2 | HK1014. 2RS | 5.2 | - | - | 10 | 14 | 12 | 14 | 4100 | 5000 | 15000 |
12 | HK1214RS | 10.7 | HK1216. 2RS | 11.5 | - | - | 12 | 18 | 14 | 6 | 6100 | 7000 | 12000 |
13 | HK13×19×12RS | 8.9 | - | - | - | - | 13 | 19 | 12 | - | 6800 | 7580 | 13000 |
14 | HK1414RS | 12 | HK1416. 2RS | 14 | BK1414RS | 14.1 | 14 | 20 | 14 | 16 | 6100 | 7500 | 11000 |
15 | HK1514RS | 12.6 | HK1516. 2RS | 14.3 | BK1514RS | 14.4 | 15 | 21 | 14 | 16 | 6800 | 8800 | 10000 |
HK1518RS | 16 | HK1520. 2RS | 18 | - | - | 15 | 21 | 18 | 20 | 9500 | 11400 | 10000 | |
16 | HK1614RS | 15.1 | HK1616. 2RS | 15.1 | BK1614RS | 15.3 | 16 | 22 | 14 | 16 | 7200 | 9200 | 10000 |
- | - | HK1620. 2RS | 16.8 | - | - | 16 | 22 | - | 20 | 9900 | 12300 | 10000 | |
17 | HK17×25×14RS | 17.7 | - | - | - | - | 17 | 25 | 14 | - | 8000 | 9800 | 13000 |
HK17×25×15.5RS | 20 | - | - | - | - | 17 | 25 | 15.5 | - | 9320 | 10400 | 13000 | |
HK17×25×18RS | 23.5 | - | - | - | - | 17 | 25 | 18 | - | 10500 | 12600 | 13000 | |
HK17×25×20RS | 26.2 | - | - | - | - | 17 | 25 | 20 | - | 11600 | 13200 | 13000 | |
18 | HK1814RS | 15.1 | HK1816. 2RS | 17 | - | - | 18 | 24 | 14 | 16 | 7800 | 9900 | 9200 |
20 | HK2012RS | 11.7 | - | - | - | - | 20 | 26 | 12 | - | 9500 | 11900 | 9000 |
- | - | HK2016. 2RS | 18.8 | - | - | 20 | 26 | - | 16 | 8000 | 10100 | 8200 | |
HK2018RS | 21.4 | HK2020. 2RS | 23.5 | BK2018RS | 24.4 | 20 | 26 | 18 | 20 | 12700 | 20100 | 7800 | |
HK20×29×18RS | 28.8 | - | - | - | - | 20 | 29 | 18 | - | 8700 | 9980 | 9000 | |
22 | HK2212RS | 14 | - | - | - | - | 22 | 28 | 12 | - | 8310 | 10000 | 7500 |
HK2214RS | 18.3 | HK2216. 2RS | 20.3 | - | - | 22 | 28 | 14 | 16 | 9000 | 12400 | 7800 | |
HK2218RS | 23.5 | HK2220. 2RS | 25.5 | - | - | 22 | 28 | 18 | 20 | 10400 | 20100 | 7800 | |
25 | - | - | HK2516. 2RS | 27.3 | - | - | 25 | 32 | - | 16 | 9800 | 13200 | 6900 |
HK2518RS | 31 | HK2520. 2RS | 33.1 | BK2518RS | 35.3 | 25 | 32 | 18 | 20 | 13600 | 20000 | 6900 | |
- | - | HK2524. 2RS | 39.7 | - | - | 25 | 32 | - | 24 | 17900 | 30000 | 6000 | |
- | - | HK2530. 2RS | 47.3 | - | - | 25 | 32 | - | 30 | 24500 | 43000 | 6300 | |
28 | - | - | HK2820. 2RS | 36.9 | - | - | 28 | 35 | - | 20 | 11400 | 22500 | 5300 |
30 | - | - | HK3016. 2RS | 28.5 | - | - | 30 | 37 | - | 16 | 10100 | 16200 | 6300 |
HK3017RS | 36.6 | HK3020. 2RS | 39.1 | - | - | 30 | 37 | 18 | 20 | 16200 | 26000 | 5300 | |
- | - | HK3024. 2RS | 49.7 | - | - | 30 | 37 | - | 24 | 21000 | 38500 | 5300 | |
35 | - | - | HK3516. 2RS | 36.4 | - | - | 35 | 42 | - | 16 | 10100 | 20300 | 5300 |
HK3018RS | 37.4 | HK3520. 2RS | 41.4 | - | - | 35 | 42 | 18 | 20 | 16700 | 30500 | 4900 | |
40 | - | - | HK4016. 2RS | 41.2 | - | - | 40 | 47 | - | 16 | 11000 | 21300 | 4900 |
HK4018RS | 47.3 | HK4020. 2RS | 50.2 | - | - | 40 | 47 | 18 | 20 | 19000 | 30500 | 4200 | |
45 | HK4518RS | 54.2 | HK4520. 2RS | 57.4 | - | - | 45 | 52 | 18 | 20 | 20300 | 41000 | 3800 |
50 | HK5022RS | 77.2 | HK5024. 2RS | 84 | - | - | 50 | 58 | 22 | 24 | 30000 | 61000 | 3200 |
