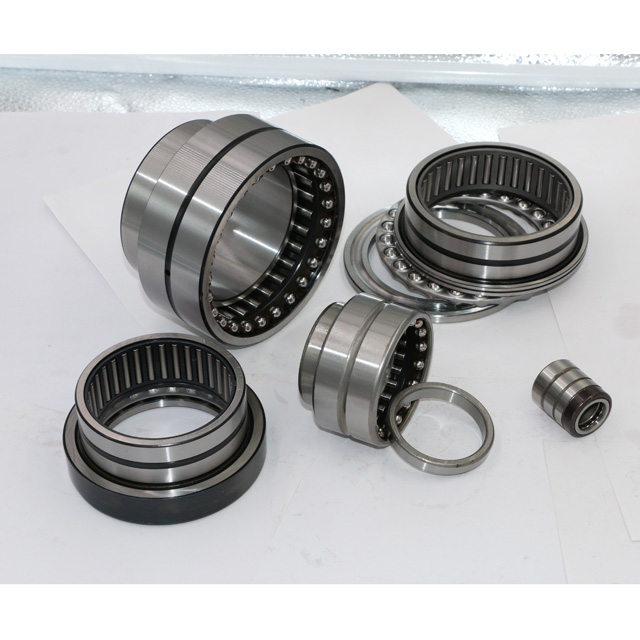

Radial needle roller and thrust ball combination bearing NKX12
XSP needle roller and cage assemblies, needle roller bearings and drawn cup needle roller bearings are free-end bearings. When combined with a thrust retaining ring, it can act as a locating bearing and can withstand small locating loads with adequate lubrication and low rotational speeds. Other positioning bearings usually take up more space. Combined needle roller bearings are locating or one-way locating bearings with the smallest radial cross-section height. Radial needle roller bearings are used in combination with thrust ball bearings or cylindrical roller bearings, bearings for worms, die head spindles and similar applications.
Shaft Diameter | Bearing model Bearing Designation | Overall dimensions Boundary Dimensions (mm) | Basic load rating Basic Load Rating（N） | Limiting Speed (Rpm) | Mounting DimensionMounting Dimension | ||||||||||
For oil lubrication r | WeightMass | With Retaining Cap | WeightMass g | f | D | C | C1 | dw | Radial | Axial | Oil lubricationOil | da | |||
Move Cr Dyn. | Jing Co Stat. | Move.Cr Dyn | Jing Co Stat. r | ||||||||||||
mm | g | mm | N | Rpm | mm | ||||||||||
10 | NKX10TN | 34 | NKX10ZTN | 36 | 10 | 19 | 23 | 9 | 10 | 5000 | 6500 | 8600 | 10800 | 12000 | 19.7 |
12 | NKX 12 | 38 | NKX 12Z | 40 | 12 | 21 | 23 | 9 | 12 | 7200 | 9060 | 9700 | 11900 | 11000 | 21.7 |
15 | NKX 15 | 44 | NKX 15Z | 47 | 15 | 24 | 23 | 9 | 15 | 9670 | 9850 | 10000 | 12300 | 9500 | 23.7 |
17 | NKX 17 | 53 | NKX 17Z | 55 | 17 | 26 | 25 | 9 | 17 | 9860 | 13800 | 10300 | 13600 | 8500 | 25.7 |
20 | NKX 20 | 83 | NKX20Z | 90 | 20 | 30 | 30 | 10 | 20 | 12000 | 20500 | 12500 | 19800 | 7500 | 30.7 |
25 | NKX 25 | 125 | NKX25Z | 132 | 25 | 37 | 30 | 11 | 25 | 14500 | 29500 | 16800 | 28000 | 6000 | 37.7 |
30 | NKX 30 | 141 | NKX 30Z | 148 | 30 | 42 | 30 | 11 | 30 | 19600 | 32500 | 19000 | 33500 | 5000 | 42.7 |
35 | NKX 35 | 163 | NKX 35Z | 168 | 35 | 47 | 30 | 12 | 35 | 20500 | 39600 | 20100 | 39000 | 4600 | 47.7 |
40 | NKX 40 | 200 | NKX40Z | 208 | 40 | 52 | 32 | 13 | 40 | 22300 | 44500 | 24500 | 50500 | 4000 | 55.7 |
45 | NKX 45 | 252 | NKX 45Z | 265 | 45 | 58 | 32 | 14 | 45 | 24500 | 50980 | 25800 | 57600 | 3600 | 60.5 |
50 | NKX 50 | 280 | NKX50Z | 300 | 50 | 62 | 35 | 14 | 50 | 34800 | 70800 | 27500 | 63200 | 3300 | 65.5 |
60 | NKX 60 | 360 | NKX60Z | 380 | 60 | 72 | 40 | 17 | 60 | 39600 | 86400 | 39800 | 94900 | 2800 | 80.5 |
70 | NKX 70 | 500 | NKX70Z | 520 | 70 | 85 | 40 | 18 | 70 | 40800 | 90800 | 40980 | 90800 | 2400 | 90.5 |
