In industrial machinery transmission systems, needle roller bearings are core precision components that adapt to narrow installation spaces and high radial load conditions. With their unique advantages of compact structure, high rigidity, and large load capacity, needle roller bearings are widely used in equipment in all fields such as automobiles, motorcycles, agricultural machinery, steel mills and mines, printing and textiles, and engineering CNC machinery. Compared with traditional ball bearings and ordinary cylindrical roller bearings, needle roller bearings have a richer variety and more subdivided adaptation scenarios. They can meet standard working conditions and special non-standard transmission needs. They are an indispensable core accessory for modern precision machinery and heavy-duty equipment. Shandong Xinshengpu Precision Needle Roller Bearing Co., Ltd. (XSP) has been deeply involved in the industry in China for more than ten years. It focuses on the research and development and manufacturing of high-end precision needle roller bearings. It provides full category coverage, precision quality, and direct supply from the source factory to provide domestic and foreign customers with cost-effective bearing solutions.
1. Core structure and product categories of needle roller bearings
Needle roller bearings use slender needle rollers as rolling elements. They have a large aspect ratio and are densely arranged. The overall structure is streamlined and compact. It is mainly composed of needle rollers, high-precision cages, and ferrules (inner/outer rings). It can be flexibly derived according to the usage scenario into various structures such as no inner ring, no outer ring, full complement of needle rollers, sealed type, and combined type. Different from ordinary bearings, needle roller bearings use line contact transmission instead of point contact, which greatly increases the load-bearing area and compresses the radial size, which is perfect for heavy-load transmission scenarios with limited space.
Relying on a mature R&D and production system, the XSP brand has achieved full category matrix coverage of needle roller bearings, fully matching various industrial working conditions, with a complete core product series, and subdivided categories to adapt to different equipment needs:

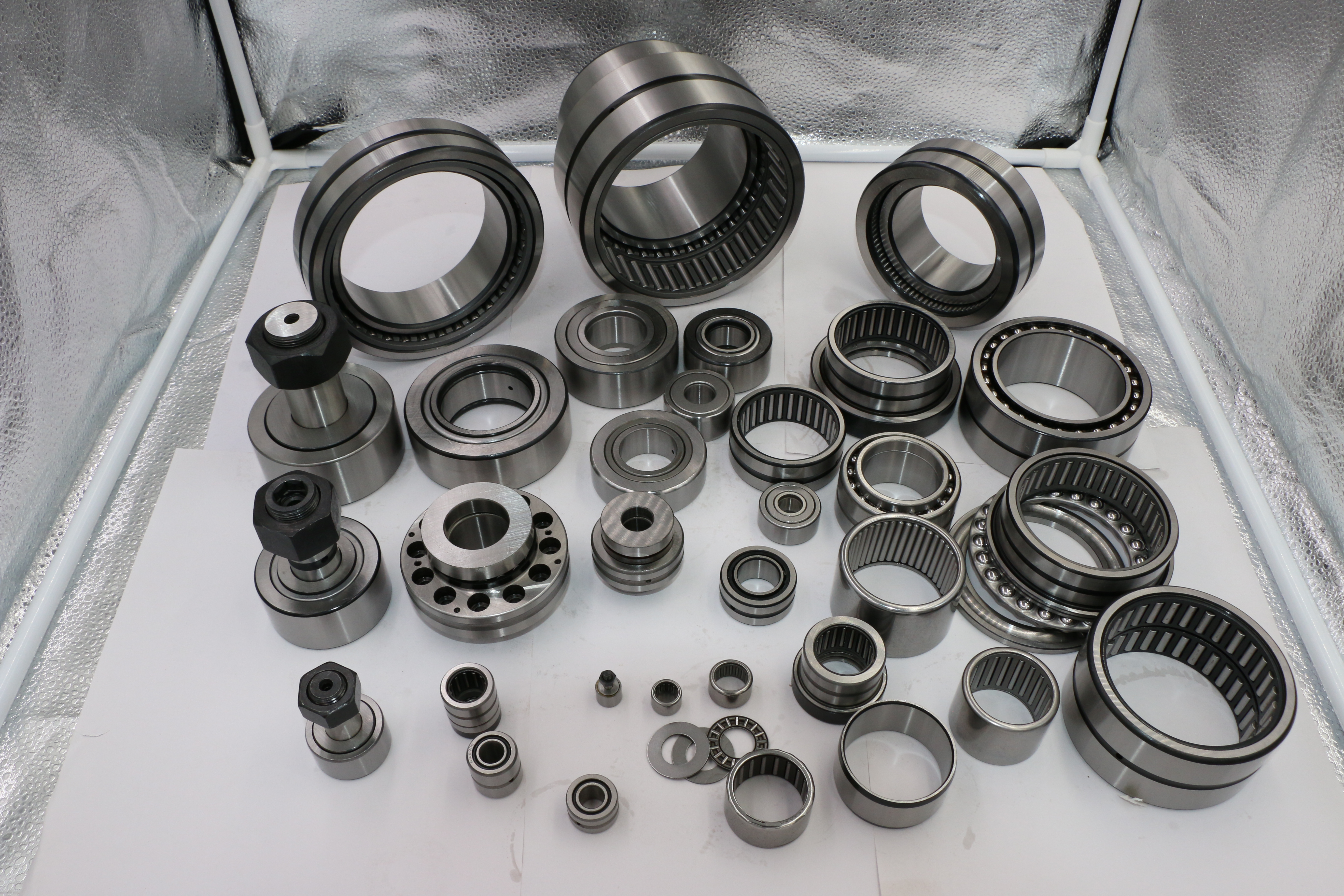

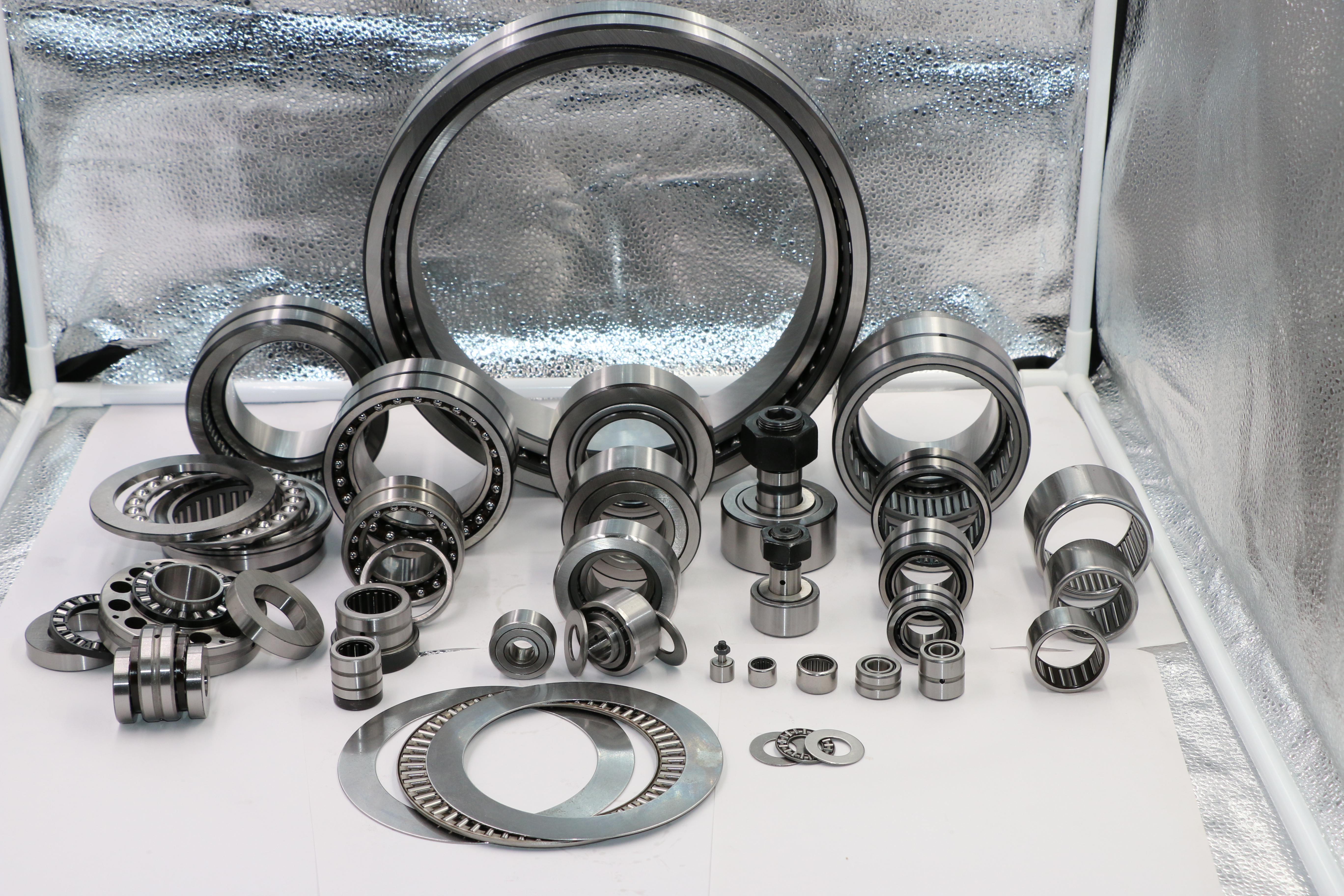

1. Solid ring needle roller bearings : including NA, RNA, NAV, RNAV, NK, NKI, NKS, NKIS, NAO, BRI inch series, etc., covering various models with inner ring, no inner ring, full needle roller, sealed type, etc., with strong structural rigidity and high precision, suitable for conventional precision transmission and high-frequency operation conditions.
2. Support roller needle roller bearings : covering NUTR, NATR, NUKR, NAKR, NAST, CF, STO, RSTO and other series. They have excellent impact resistance and wear resistance and are mostly used in mechanical rollers, guide transmissions, and linear motion mechanisms.
3. Combined radial thrust needle roller bearings : including NKIA, NKIB, NX, NKX, NKXR, ZARN, ZARF and other categories, integrating radial and axial load-bearing capabilities, solving the pain point of ordinary needle roller bearings being unable to withstand axial loads, and adapting to complex stress transmission scenarios.
4. Stamped outer ring and thrust needle roller bearings : including HK, BK, F, B, TA stamped outer ring bearings, AXK, AS, LS thrust bearings, HF, HFL one-way bearings, K, KK cage components, roller bearings, etc., thin-walled and lightweight design, suitable for special working conditions such as micro equipment, compact structure, one-way transmission.
At the same time, the factory supports the customization of a full range of non-standard bearings . It can design and produce exclusive needle roller bearings according to the special size, special load, and special speed requirements of customer equipment, covering all aspects of standardized and personalized procurement needs.
2. Core performance advantages and working condition adaptation of needle roller bearings
As the benchmark category of industrial heavy-duty compact bearings manufactured in China, XSP precision needle roller bearings have outstanding performance advantages after years of process iteration, and are perfectly adapted to various complex industrial scenarios. The core advantages are concentrated in four major dimensions:
1. Extremely small radial size, suitable for compact spaces : Under the same load and inner diameter specifications, the radial cross-section size of needle roller bearings is much smaller than that of other bearings, which can save equipment installation space and facilitate the miniaturization and lightweight upgrade of mechanical equipment. It is an accessory for micro precision machinery and compact transmission equipment.
2. Ultra-high radial load-bearing, heavy-load impact resistance : The high-density needle roller arrangement design allows the bearing to bear uniform force and a large contact area. The radial load-bearing capacity is far higher than that of ball bearings of the same specification. It has strong rigidity, resistance to deformation, and impact resistance. It can operate stably for a long time in heavy-load, high-frequency impact conditions such as steel plants, mines, and engineering machinery.
3. Precision craftsmanship, stable, durable and low-noise : It adopts G2-level high-precision needle rollers, with diameter variation controlled within 2 μm. It is equipped with a high-rigidity precision cage to guide the needle rollers to run parallel to the axis. It has low friction coefficient, less heat generation, and low operating noise. It can operate stably under high and low speed conditions, greatly extending the service life of the equipment.
4. Strong adaptability and wide scene coverage : The product categories are comprehensively segmented and can meet various working conditions such as radial single force, radial and axial composite force, one-way transmission, linear guide, micro precision, heavy and heavy load, etc., and are widely adapted to equipment in all industries such as automobiles, motorcycles, agricultural vehicles, printing, textiles, CNC, engineering machinery, etc.
3. Application limitations and professional selection points of needle roller bearings
While being widely adaptable to various working conditions, needle roller bearings have inherent usage characteristics. Determining the selection and standard installation can effectively avoid failures and extend service life, which are key points in industrial applications. Conventional standard needle roller bearings can only bear radial loads and cannot independently bear axial loads . When the equipment has axial movement and axial pressure, it must be used in combination with thrust bearings and thrust washers.
At the same time, needle roller bearings have high requirements for the precision and hardness of the supporting shaft. The inner ring-less style must rely on a hardened shaft as a raceway. The surface hardness of the shaft must be no less than HRC60, and the roughness Ra value must not be greater than 0.63 μm; and the bearing is highly sensitive to installation coaxiality. Equipment processing and installation accuracy must be ensured to avoid problems such as uneven force on the needle roller, local wear, jamming and abnormal noise. The XSP professional technical team can provide free model selection and working condition adaptation guidance to help customers correctly match models and avoid usage risks.
4. XSP Xinshengpu: The strength of the source factory, the first choice for one-stop bearing procurement
Shandong Xinshengpu Precision Needle Roller Bearing Co., Ltd. was established in 2007 and is located in Panzhuang Industrial Park, Linqing, Shandong. It is a high-tech bearing manufacturing enterprise integrating R&D, production, customization, sales, import and export. It has been deeply involved in the needle roller bearing industry for more than ten years. With its large-scale production capacity, precision workmanship, high cost performance and mature foreign trade system, it has become a source supplier trusted by domestic and foreign customers.
1. Large-scale factory, high output, stable supply, and fast delivery : The company has a standardized production base and a full set of automated production lines, equipped with professional precision production equipment and testing instruments, to realize independent control of the entire process from raw material screening, heat treatment, precision grinding, assembly to quality inspection. It has outstanding large-scale mass production capabilities, sufficient inventory of conventional models, and stable daily output. It can undertake large-volume orders, guarantee customer delivery on demand, and eliminate shortages and delays.
2. Seiko quality certification, stable and reliable quality : The company strictly follows national quality management standards and has passed ISO9001:2008 quality management system certification . All products are refined from high-purity bearing steel and undergo multiple processes such as hardening heat treatment, ultra-precision grinding, precision calibration, and non-destructive testing. They have high dimensional accuracy, wear resistance and stable operation. The product qualification rate remains at the highest level in the industry, and the factory quality is controlled at all levels.
3. Direct supply from the source factory, the price/performance ratio is far better than that of middlemen : As an independent production source manufacturer, there is no middleman to increase prices. It relies on large-scale production capacity to reduce costs and increase efficiency, and on the premise of ensuring high-end precision workmanship, it can provide customers with highly competitive ex-factory prices. Whether it is a small batch of sample purchases, or a large batch of engineering orders or foreign trade orders, you can enjoy affordable ex-factory prices, significantly reducing customer procurement costs.
4. More than ten years of foreign trade experience, supporting global exports : The company has a mature import and export business system and has been deeply involved in the foreign trade industry for more than ten years. It is familiar with the export procedures, customs declaration specifications and product standards of various countries. Its products are exported to all over the world, and its cooperative customers are located at home and abroad. It can provide complete export documents, customized foreign trade packaging, support multiple payment methods, and provide one-stop foreign trade services, which is worry-free, efficient, compliant and reliable.
5. Full-dimensional services to meet diverse needs : not only provide a full range of standard needle roller bearings, but also undertake customization of various non-standard bearings. The technical team can develop and produce according to customer drawings and working condition requirements; at the same time, free selection consultation, working condition adaptation guidance, and after-sales technical support are provided. Adhering to the business purpose of 'integrity-based, quality first', we will protect customers throughout the entire process.
Purchasing optimization, win-win cooperation : when buying needle roller bearings, choose XSP Xinshengpu source factory directly! A large-scale factory with sufficient production capacity, excellent quality, affordable prices, and more than ten years of foreign trade export experience is trustworthy. Whether it is domestic industrial and mining enterprises, equipment manufacturers, or overseas buyers, you can cooperate with confidence. Customers from all walks of life are welcome to consult and negotiate, conduct on-site factory inspections, and work together to create a new situation of mutually beneficial and win-win cooperation!
