NKIB5901
XSP or OEM

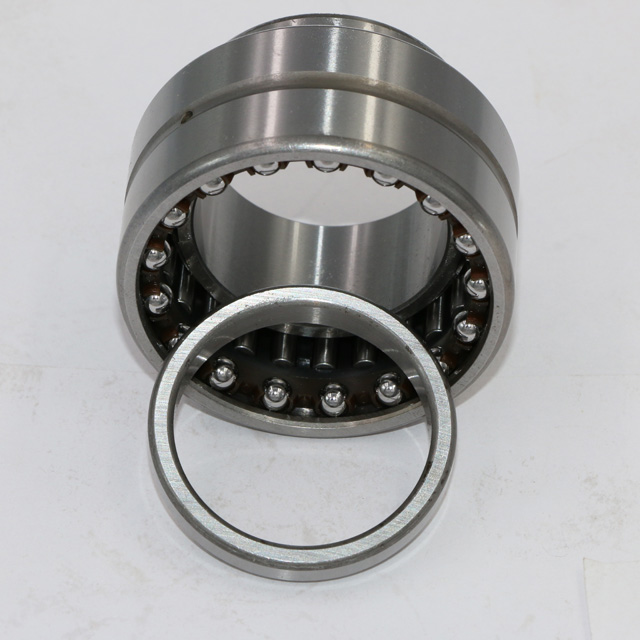

Bidirectional angular contact ball and radial needle roller combination bearing NKIB5901
XSP needle roller and cage assemblies, needle roller bearings and drawn cup needle roller bearings are free-end bearings. When combined with a thrust retaining ring, it can act as a locating bearing and can withstand small locating loads with adequate lubrication and low rotational speeds. Other positioning bearings usually take up more space. Combined needle roller bearings are locating or one-way locating bearings with the smallest radial cross-section height. Radial needle roller bearings are used in combination with thrust ball bearings or cylindrical roller bearings, bearings for worms, die head spindles and similar applications.
Shaft diameter Shraft Diameter | Bearing model Bearing Designation | WeightMass | Overall dimensions Boundary Dimensions (mm) | Basic load rating Basic Load Rating（N） | Limiting Speed (Rpm) | |||||||
Radial | Axial | |||||||||||
d | F | D | B | C | Move Cr Dyn. | JingCor Stat. | Move Cr Dyn. | JingCor Stat. | oil lubrication Oil | |||
mm | g | mm | N | Rpm | ||||||||
12 | NKIB 5901 | 43 | 12 | 16 | 24 | 17.5 | 16 | 7 6000 | 8 300 | 2 160 | 1 940 | 23 000 |
15 | NKIB 5902 | 52 | 15 | 20 | 28 | 20 | 18 | 10 600 | 13 600 | 2 340 | 2 370 | 21 000 |
17 | NKIB 5903 | 58 | 17 | 22 | 30 | 20 | 18 | 11 000 | 14 600 | 2 500 | 2 750 | 20 000 |
20 | NKIB 5904 | 107 | 20 | 25 | 37 | 25 | 23 | 21 000 | 25 500 | 3 950 | 4 200 | 17 000 |
22 | NKIB 59/22 | 122 | 22 | 28 | 39 | 25 | 23 | 22 800 | 29 500 | 4 250 | 4 850 | 15 000 |
25 | NKIB 5905 | 134 | 25 | 30 | 42 | 25 | 23 | 23 000 | 31 500 | 4 350 | 5 200 | 14 000 |
30 | NKIB 5906 | 151 | 30 | 35 | 47 | 25 | 23 | 25 000 | 35 500 | 4 750 | 6 300 | 13 000 |
35 | NKIB 5907 | 247 | 35 | 42 | 55 | 30 | 27 | 31 500 | 50 000 | 6000 | 8 400 | 11 000 |
40 | NKIB 5908 | 320 | 40 | 48 | 62 | 34 | 30 | 43 000 | 67 000 | 7 400 | 10 900 | 9 000 |
45 | NKIB 5909 | 380 | 45 | 52 | 68 | 34 | 30 | 45 000 | 73 000 | 7 700 | 12 000 | 8 500 |
50 | NKIB 5910 | 385 | 50 | 58 | 72 | 34 | 30 | 47 000 | 80 000 | 8 100 | 13 700 | 8 000 |
55 | NKIB 5911 | 555 | 55 | 63 | 80 | 38 | 34 | 58 000 | 100 000 | 9 700 | 16600 | 7 000 |
60 | NKIB 5912 | 595 | 60 | 68 | 85 | 38 | 34 | 60 000 | 108 000 | 10 000 | 17 900 | 6 500 |
65 | NKIB 5913 | 640 | 65 | 72 | 90 | 38 | 34 | 61 000 | 112 000 | 10 300 | 19 300 | 6500 |
70 | NKIB 5914 | 985 | 70 | 80 | 100 | 45 | 40 | 84 000 | 156 000 | 13 500 | 25 000 | 5 500 |
